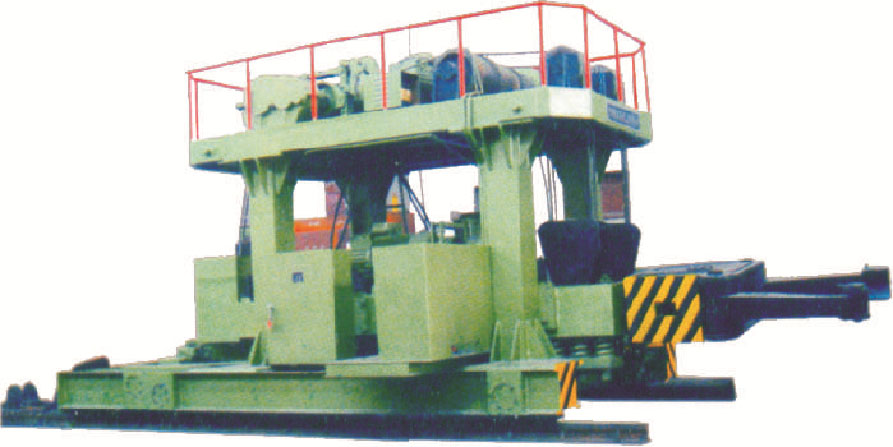

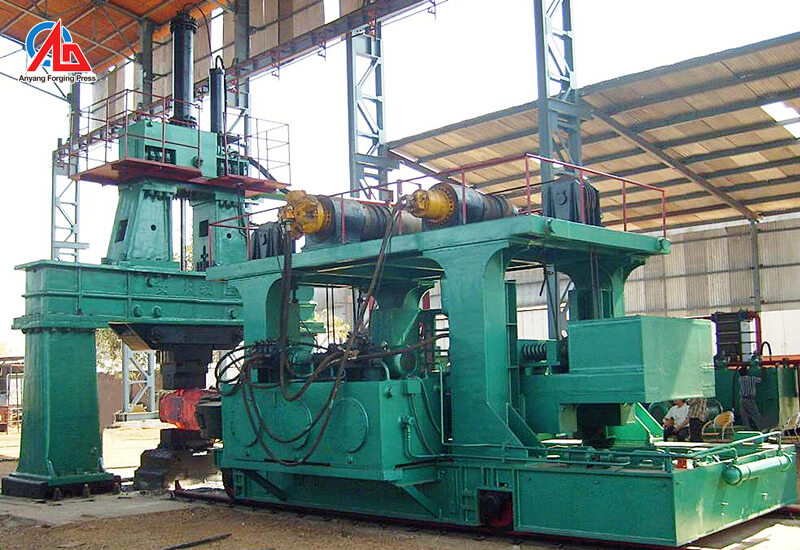

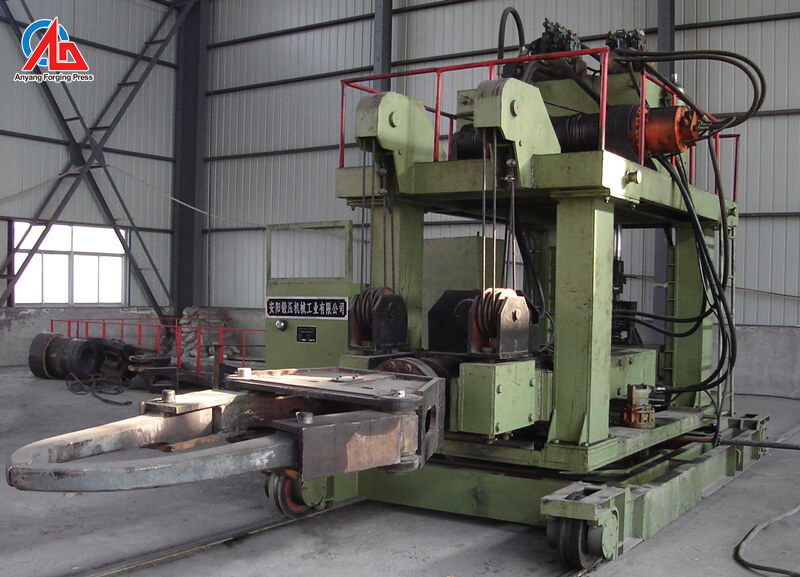

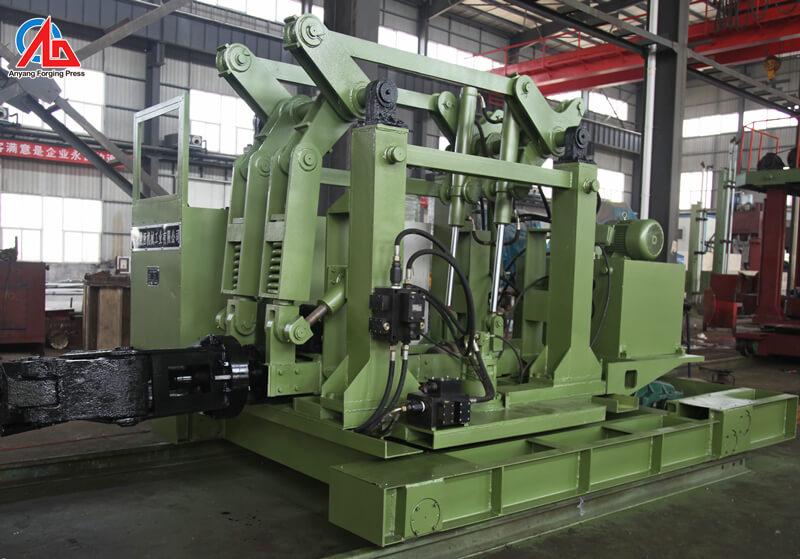

Product introduction

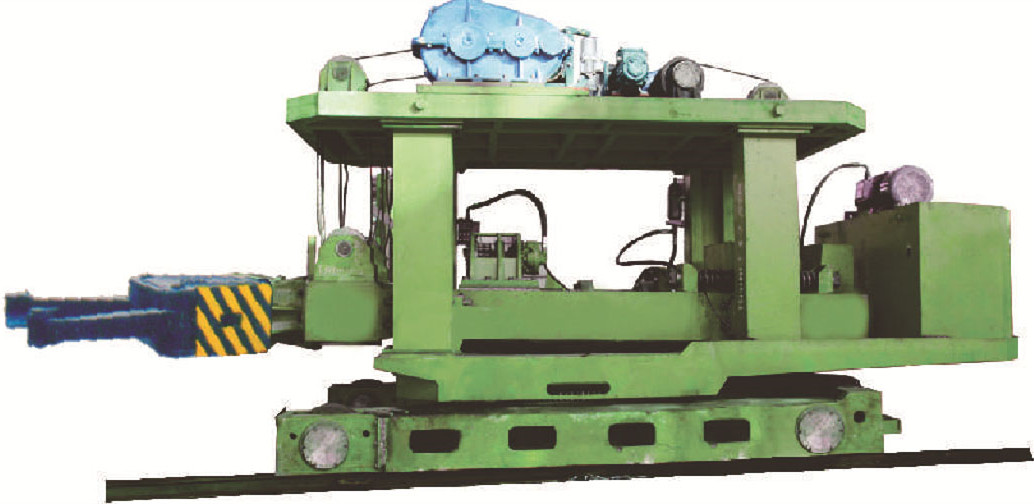

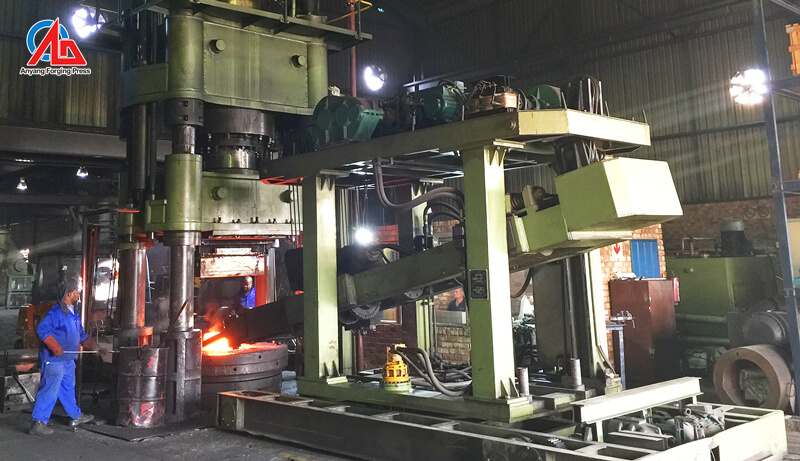

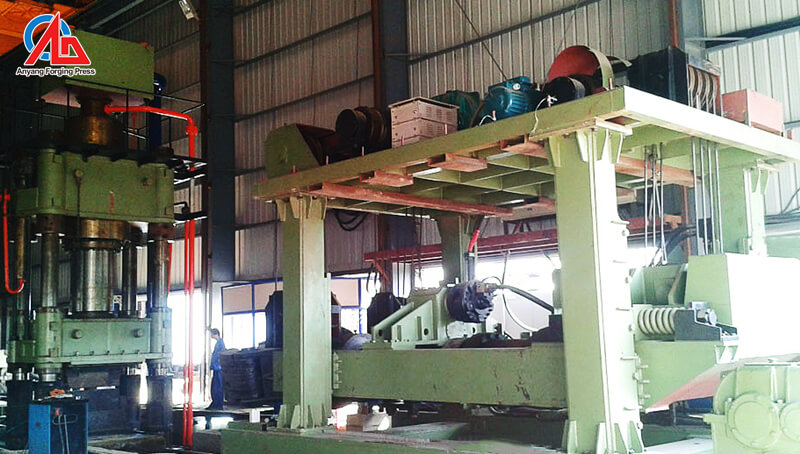

The frame type forging manipulator includes translational movement manipulator and rotating movement manipulator. Frame type translational movement manipulator actions include manipulator travelling, front and rear side of clamping rod goes up and down, clamping device incline, clamping head rotating, and tong open and close.

Frame type rotating movement manipulator actions include manipulator travelling, front and rear side of clamping rod goes up and down, clamping device incline, clamping head rotating, and tong open and close, and frame rotating movement.

Technical parameters

Model

T31DHH-1

T31DHZ-1

T31DHH-2

T31DHZ-2

T31DHH-3

T31DHZ-3

T31DHH-5

T31DHZ-5

T31DHZ-8

T31DHZ-10

T31DHZ-15

Nominal Loading Force

KN

10

10

20

20

30

30

50

50

80

100

150

Holding Moment

KNM

20

20

48

48

60

60

120

120

200

250

300

Holding Diameter Range

mm

60-420

60-420

100-600

100-600

150-650

150-650

150-800

150-800

180-1000

170-1030

240-1200

Min Clamp Rod Height

mm

650

650

750

620

750

650

1050

780

800

800

800

Clamp Body Vertical Stroke

mm

550

550

750

880

550

650

700

720

1000

1000

1080

Clamp Rod Vertical Movement Speed

m/min

6

6

7

7

6

6

5

5

6

6

5

Clamp Up Pitch Angle

°

7

7

10

10

10

10

7

7

7

7

10

Clamp Down Pitch Angle

°

15

15

15

Touch Ground

Touch Ground

Touch Ground

12

Touch Ground

Touch Ground

12

7

Clamp Rotating Speed

r/min

20

20

25

25

20

20

18

18

20

15

15

Manipulator Travelling Speed

m/min

40

40

40

40

26

26

25

25

20

15

20

Rail Distance

mm

2236

2236

2236

2236

2300

2300

2300

2300

2500

2800

3000
