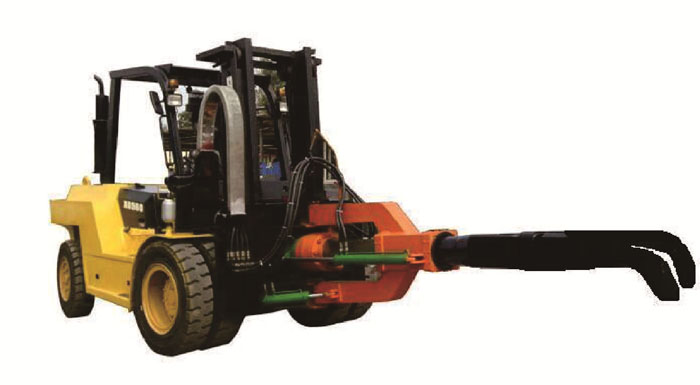

ZHJ Mobile Charging ManipulatorZHJ Mobile Charging Manipulator

Introduction:

The mobile manipulator main are being used for working pieces loading and charging, also being used for transportation of working pieces. This mobile loading and charging manipulator is able to charging working pieces from ground, loading into furnace, after heating, to charging the working pieces from furnace to forging hammer, forging press or ring rolling machine etc main forging equipments. Also being used for transportation of working pieces. Also being used for simple assistance operations for saddle forging, changing forging dies and picking up the head materials.

Features:

  • Efficient forging process and high performance.
  • Operational costs will be reduced significantly.
  • Rapid movements with highest precision will be achieved.
  • The quality of the forgings as well as the capacity of the production line can be significantly increased.

Technical parameters:

Item

Unit

0.5T

1T

2T

3T

5T

6T

Nominal Loading Weight

T

0.5

1

2

3

5

8

Loading Diameter Range

mm

80-400

80~600

80~700

100~850

100~1350

180~1500

Clamp Rod Min. Height

mm

500

500

700

800

1000

1000

   Clamp Rod Max. Height

mm

1500

1500

1600

1600

2000

2000

Travelling Speed

km/h

18

19

28

28

28

28

Clamp Rod Up / Down Pitch Angle

°

6/10

6/10

6/10

6/10

6/10

6/10

Clamp Rod Rotating Angle

°

360

360

360

360

360

360

Clamp Front Tip to Front Wheel Center Distance

mm

3100

2500

2800

2800

2800

2800
