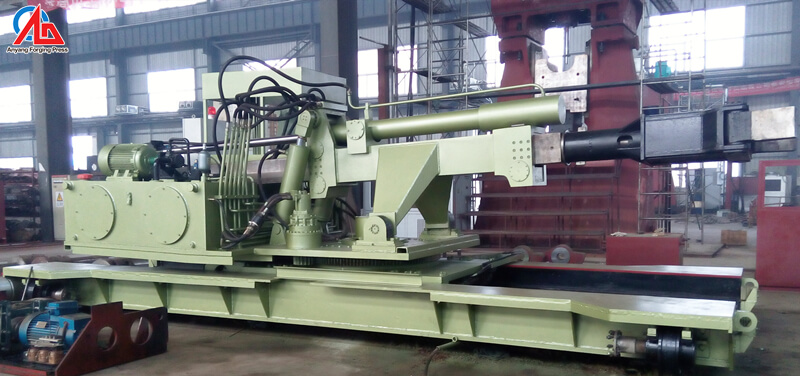

ZHJ Rail Bound Charging ManipulatorZHJ Rail Bound Charging Manipulator

Introduction:

Forging charger is a mechanical-hydraulic mixed type machine.,it is used to transport cold and hot ingots discs and rings in open-die forging plants, ring mills, blooming mills and similar works. According to the types of the manipulative workpiece, they fall into clamp-support type, clamp-hold type, fork type. It can do the functions: manipulator walk,upside of the manipulator turn around, clamp rod flex,clamp rod lifting.

Features:

  • Efficient forging process and high performance.
  • Operational costs will be reduced significantly.
  • Rapid movements with highest precision will be achieved.
  • The quality of the forgings as well as the capacity of the production line can be significantly increased.

From structures, the rail bound loading and charging manipulator adopts hydraulic and mechanical mixed type. From the working model, the loading and charging manipulator tongs include clamping type, holding type and fork type, to carry out loading and charging manipulator travelling, upper part travelling on chassis, upper part rotating, clamp rod stretch out and draw back, clamp rod goes up and down, clamp head rotating etc action.

It is used to load and transport the forgings and billets from furnace, which can greatly shorten the handling time, increase the productivity, reduce labor intensity, realize forging production mechanization.

Technical parameters:

Item

Unit

ZHJ-1

ZHJ-2

ZHJ-3

ZHJ-5

ZHJ-8

ZHJ-10

ZHJ-15

ZHJ-20

ZHJ-30

Nominal Loading Weight

T

1

2

3

5

8

10

15

20

30

Rail Distance

mm

4000

5000

6000

6000

6000

6500

6500

7000

8000

Loading Diameter Range

mm

50~600

50~700

100~850

100~1000

150~1350

180~1450

180~1550

200~1650

200~1800

Clamp Rod Stretch Quantity

mm

1800

1800

2100

2100

2300

2300

2300

2300

2300

Clamp Rod Center Height

mm

1235

1285

1450

1800

1756

1790

2000

2300

2500

Loading and Charging Height

mm

-300~1300

-300~1400

-200~1700

-200~1700

-200~1800

-200~1900

-300~2100

-300~2300

-300~2600

Upper Manipulator Speed

m/min

15

15

15

15

15

15

15

15

15

Manipulator Speed

m/min

48

43

42

41

35

26

26

26

26

Upper Manipulator Rotating Speed

r/min

3

3

3

3

3

3

3

3

3

System Pressure

Mpa

8

8

10

12

12

12

12

12

12
