Fully Hydraulic Hammer Introduction

C66Y series fully hydraulic open die forging hammer is fully hydraulic drive open die forging hammer, there single arm type, arch type and bridge type etc structure type. The system principle is the below chamber of hammer rod piston connect the high pressure oil all the time,realize hit through control the upper and below oil pressure of piston of piston.It’s used for open die forging.

Technical Characteristics of Hydrualic Hammmer

  • Energy enough,hit frequency high, hammer lift fast.
  • ailure rate low, stop hammer at any position.
  • X type guide rail, high forging precision, long life of hammer rod .

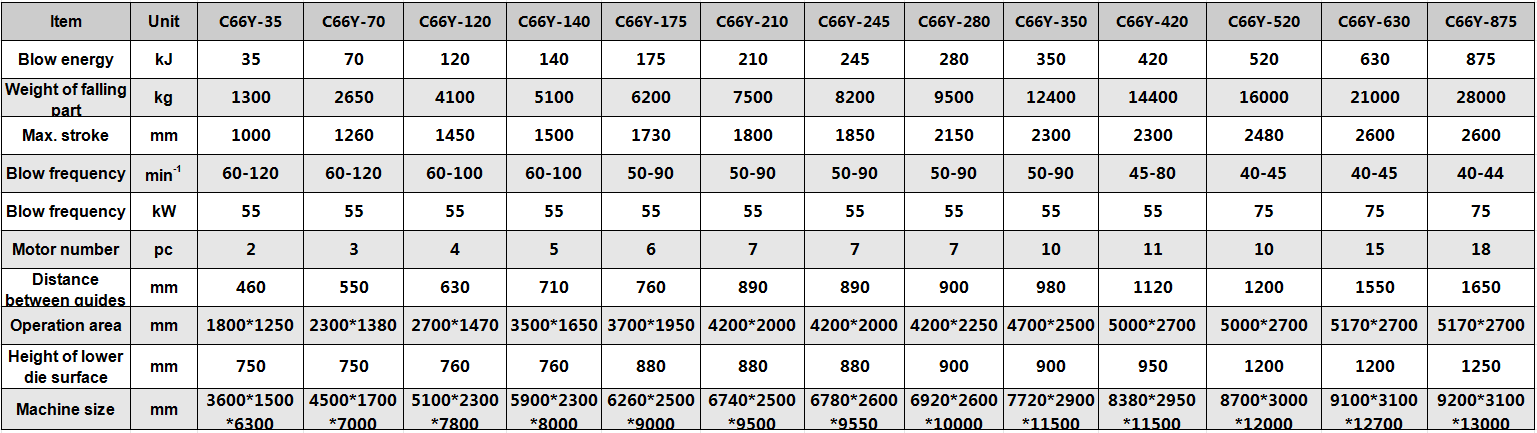

Parameter of Hydraulic Open Die Hammer

Item

Unit

C66Y-35
(1T)

C66Y-70
(2T)

C66Y-120
(3T)

C66Y-140
(4T)

C66Y-175
(5T)

C66Y-210
(6T)

C66Y-245
(7T)

C66Y-280
(8T)

C66Y-350
(10T)

Max. energy

KJ

35

70

120

140

175

210

245

280

350

Weight of tup

kg

1300

2450

3750

4400

5600

6600

7500

8000

10000

Max.stroke

mm

1000

1260

1450

1500

1730

1800

1850

1900

1950

Hit frequency

min-1

65-75

65-75

50-55

50-60

45-50

45-50

46-50

40-45

40-45

Motor power

kw

55×2

55×3

55×4

55×5

55×5

55×6

55×7

55×7

55×10

Guide distance

mm

460

550

630

630

760

890

890

980

980

Operating

space

mm

1800×

1250

2300×

1380

2700×

1470

2700×

1470

3700×

2000

3700×

2150

3820×

2200

4700×

2250

4700×

2350

Bottom die

suface height

mm

750

750

760

760

880

880

900

900

900

Outslde

dimension
(L×W×H)

mm

3600×

1500×

6000

4500×

1700×

6500

5100×

2300×

7500

5100×

2300×

7800

6300×

2700×

8500

6300×

2700×

8800

7000×

2700×

9100

7500×

2800×

9500

7500×

2800×

10000
