D53K Series CNC Ring Rolling MachineD53K Series CNC Ring Rolling Machine

Introduction of Ring Rolling Machine:

D53K series ring rolling machine (radial & axial ) is professinal machine to make ring forgings, has high efficiency, high precision, good working condition etc advantages , it is widely used for machining seamless ring forgings of bearing ring, gearing ring, flange, hub, thin-wall cylinder, wind generator flange, welding neck flange in the material of carbon steel, alloy steel, stainless steel, titanium alloy, copper alloy, aluminum alloy, high temperature alloy in the fields of machinery, auto, vessel, petrochemical, aerospace, atomic energy, wind generator etc.

Advantages of Ring Rolling Machine:

  • High material utilization
  • Good quality
  • Good working conditions, high productivity
  • Low production costs

Technical parameters of ring roll machine:

Item Unit

D53K-

630

D53K-

1000

D53K-

1600

D53K-

2000

D53K-

2500

D53K-

3000

D53K-

3500

D53K-

5000

D53K-

6300

D53K-

8000

D53K-

9000

D53K-

10000

D53K-

12000

Machine

parater

Radial

force

KN 630 800 1250 1600 2000 2000 2000 2500 4000 6300 8000 10000 16000

Axial

force

KN 500 630 1000 1250 1250 1600 1600 2000 3150 4000 5000 6300 8000

Angel of

taper

roller

° 30 30 40 30 35 35 30 30 30 30 30 30 30

Rolling

line

speed

m/s 1.5 1.3 / 0.5~1.4

Drive

power

Radial

motor

KW 160 200 280 2×200 2×250 2×315 2×280 2×400 2×500 2×690 2×900 2×1250 2×2000

Axial

motor

KW 2×75 2×110 2×160 2×200 2×220 2×315 2×280 2×400 2×500 2×600 2×800 2×1000 2×1300

Brouching

dimension

OD of

roller

mm

300~

630

400~

1000

500~

1600

600~

2000

600~

2500

600~

3000

700~

3500

800~

5000

900~

6300

1000~

8000

1100~

9000

1250~

10000

1500~

12000

Spacing

distance

of

taper

rollers

 mm

40~

300

50~

400

60~

500

80~

550

80~

550

80~

650

80~

650

90~

800

100~

1000

110~

1350

110~

1600

120~

1800

130-

2000

Machine

capacity

Max

rolling

height

mm 200 300 400 450 500 500 500 650 900 1200 1450 1650 2000

Max

width

of

billet

mm 150 180 200 350 300 400 420 500 700 800 850 1000 1200

Max

width

of

product

mm 90 110 120 200 150 220 250 300 420 480 530 600 700

Machine

outsize

Length mm 9500 10500 11000 13500 14500 18000 19000 21000 25000 32000 36000 40000 47000
Width mm 2100 2300 2500 2400 3500 3500 3400 4500 5800 6500 7500 8000 10000

Height

 from

ground

mm 3000 3500 4300 5200 5000 5500 5800 6200 7200 9400 10000 10500 11500

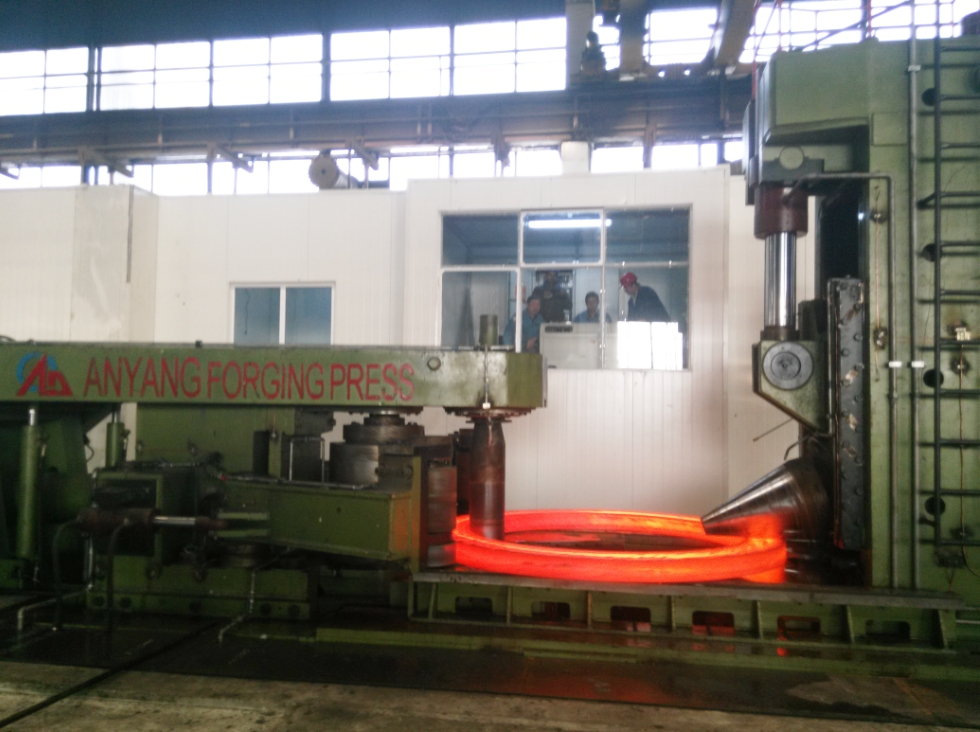

Production pictures in workshop

ring miller production

Videos of how to make rings

Anyang D53K-3000 Ring Rolling Machine exported to Ramania to make rings from 1000mm to 3000mm.

Anyang D53K-2000 cnc ring rolilng machine make petroleum pipeline flange ring
